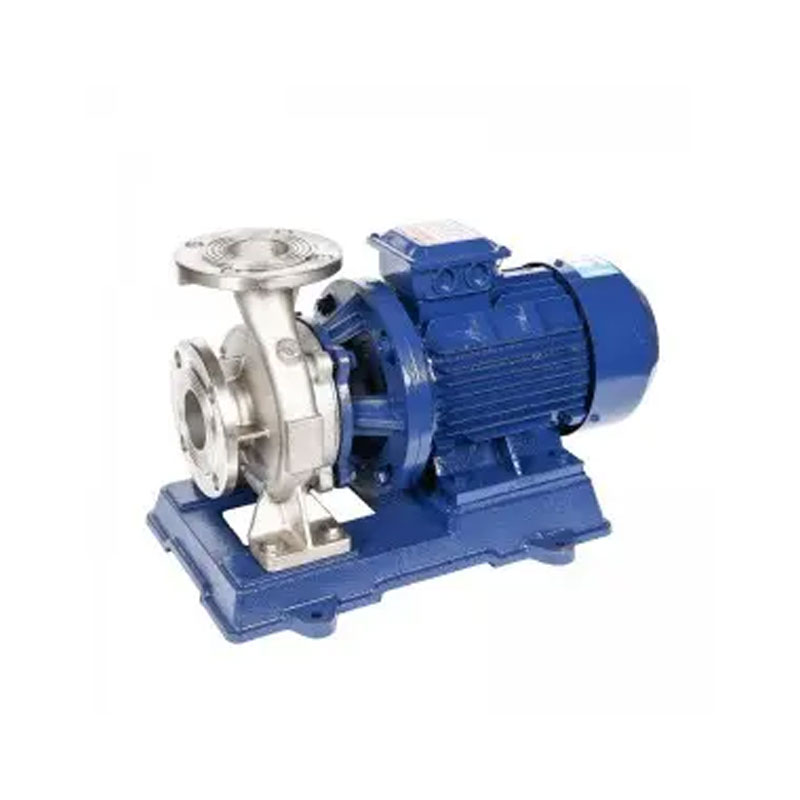

துருப்பிடிக்காத எஃகு கிடைமட்ட குழாய் பம்ப்

ஷாங்காய் கிரவுன் பம்ப் உற்பத்தி நிறுவனம், லிமிடெட் என்பது உயர்தர நீர் பம்ப் தீர்வுகளின் அங்கீகரிக்கப்பட்ட வழங்குநராகும். பல்வேறு தொழில்துறை பயன்பாடுகளில் வலுவான வடிவமைப்பு மற்றும் நம்பகமான செயல்பாட்டிற்கு அறியப்பட்ட திறமையான எஃகு குழாய் பம்புகளை தயாரிப்பதில் நாங்கள் நிபுணத்துவம் பெற்றோம். எங்கள் எஃகு கிடைமட்ட பைப்லைன் பம்ப் தொடர் கடுமையான ஐஎஸ்ஓ தரங்களுடன் இணங்குகிறது, இது ஆற்றல் திறன் மற்றும் உயர் செயல்திறன் கொண்ட உந்தி தீர்வுகளைத் தேடும் பயனர்களுக்கு ஒரு முதன்மை தேர்வாக அதை நிலைநிறுத்துகிறது.

விசாரணையை அனுப்பு

தயாரிப்பு விளக்கம்

Our IHW stainless steel horizontal pipeline pump series is meticulously engineered to handle multiple fluid types, ensuring long-lasting performance and minimal maintenance. Designed to ISO2858 and JB/T53058-93 standards, the IHW series delivers exceptional efficiency in transferring clear water or similar liquids, ideal for applications in municipal, industrial, and corrosive environments.

Temperature Range Options:

● ISW: Suitable for general water transfer up to 80ºC.
● IRW: Ideal for hot water applications up to 120ºC.
● GRW: Suited for high-temperature conditions up to 240ºC.
● IHW: Specialized for handling corrosive liquids between -20ºC and 120ºC.

Work Conditions

● Inlet Pressure: Maximum 1.0 MPa, with the system's total operating pressure not exceeding 1.6 MPa. Static pressure testing is conducted at 2.5 MPa.
● Ambient Conditions: Operates efficiently in environments with ambient temperatures below 40ºC and humidity levels under 95%.
● Solid Particles: Suitable for media with a particle volume not exceeding 0.1% and particle sizes less than 0.2 mm.

Main Specification

Model	Power		Flow	Head	Pipe size
Model	kw	Hp	m3/h	m	Inch	mm
40-125	1.1	1.5	6.3	20	1.5	40
40-125A	0.75	1	5.6	16	1.5	40
40-160	2.2	3	6.3	32	1.5	40
40-160A	1.5	2	5.9	28	1.5	40
40-160B	1.1	1.5	5.5	24	1.5	40
40-200	4	5.5	6.3	50	1.5	40
40-200A	3	4	5.9	44	1.5	40
40-200B	2.2	3	3.7	38	1.5	40
40-250	7.5	10	6.3	80	1.5	40
40-250A	5.5	7.5	5.9	70	1.5	40
40-250B	4	5.5	5.5	60	1.5	40
40-125(I)	1.5	2	12.5	20	1.5	40
40-125(I)A	1.1	1.5	11	16	1.5	40
40-160(I)	3	4	12.5	32	1.5	40
40-160(I)A	2.2	3	11.7	28	1.5	40
40-200(I)B	3	4	10.6	36	1.5	40
40-250(I)	11	15	12.5	80	1.5	40
40-250(I)A	7.5	10	11.6	70	1.5	40
50-100	1.1	1.5	12.5	12.5	2	50
50-125	1.5	2	12.5	20	2	50
50-125A	1.1	1.5	11	16	2	50
50-160	3	4	12.5	32	2	50
50-160A	2.2	3	11.7	28	2	50
50-160B	1.5	2	10.4	22	2	50
50-200	5.5	7.5	12.5	50	2	50
50-200A	4	5.5	11.7	44	2	50
50-200B	3	4	10.6	36	2	50
50-250	11	15	12.5	80	2	50
50-250A	7.5	10	11.6	70	2	50
50-100(I)	1.5	2	25	12.5	2	50
50-100(I)A	1.1	1.5	22.3	10	2	50
50-125(I)	3	4	25	20	2	50
50-125(I)A	2.2	3	22.3	16	2	50
50-160(I)	4	5.5	25	32	2	50
50-160(I)A	4	5.5	23.4	28	2	50
50-160(I)B	3	4	21.6	24	2	50
50-200(I)	7.5	10	25	50	2	50
50-200(I)A	7.5	10	23.5	44	2	50
50-200(I)B	5.5	7.5	21.8	38	2	50
50-250(I)	15	20	25	80	2	50
50-250(I)A	11	15	23.4	70	2	50
50-250(I)B	11	15	21.6	60	2	50
50-315	30	40	25	125	2	50
65-100	1.5	2	25	12.5	2.5	65
65-100A	1.1	1.5	22.3	10	2.5	65
65-125	3	4	25	20	2.5	65
65-125A	2.2	3	22.3	16	2.5	65
65-160	4	5.5	25	32	2.5	65
65-160A	4	5.5	23.4	28	2.5	65
65-160B	3	4	21.6	24	2.5	65
65-200	7.5	10	25	50	2.5	65
65-200A	7.5	10	23.5	44	2.5	65
65-200B	5.5	7.5	21.8	38	2.5	65
65-250	15	20	25	80	2.5	65
65-250A	11	15	23.4	70	2.5	65
65-250B	11	15	21.6	60	2.5	65
65-315A	22	30	23.7	113	2.5	65
65-315B	18.5	25	22.5	101	2.5	65
65-100(I)	3	4	50	12.5	2.5	65
65-100(I)A	2.2	3	44.7	10	2.5	65
65-125(I)	5.5	7.5	50	20	2.5	65
65-125(I)A	4	5.5	45	16	2.5	65
65-160(I)	7.5	10	50	32	2.5	65
65-160(I)A	7.5	10	46.7	28	2.5	65
65-160(I)B	5.5	7.5	43.4	24	2.5	65
65-200(I)	15	20	50	50	2.5	65
65-200(I)A	11	15	47	44	2.5	65
65-200(I)B	7.5	10	43.3	38	2.5	65
65-250(I)	22	30	50	80	2.5	65
65-250(I)A	18.5	25	46.7	70	2.5	65
65-250(I)B	15	20	43.3	60	2.5	65
65-315(I)A	30	40	56.5	110	2.5	65
80-100	3	4	50	12.5	3	80
80-100A	2.2	3	44.7	10	3	80
80-125	5.5	7.5	50	20	3	80
80-125A	4	5.5	45	16	3	80
80-160	7.5	10	50	32	3	80
80-160A	7.5	10	46.7	28	3	80
80-160B	5.5	7.5	43.4	24	3	80
80-200	15	20	50	50	3	80
80-200A	11	15	47	44	3	80
80-200B	7.5	10	43.3	38	3	80
80-250	22	30	50	80	3	80
80-250A	18.5	25	46.7	70	3	80
80-250B	15	20	43.3	60	3	80
80-315	37	50	50	125	3	80
80-315A	30	40	46.5	110	3	80
80-315B	30	40	44.5	100	3	80
80-350	55	75	50	150	3	80
80-350A	45	60	44.5	142	3	80
80-350B	37	50	41	135	3	80
80-100(I)	5.5	7.5	100	12.5	3	80
80-100(I)A	4	5.5	89	10	3	80
80-125(I)	11	15	100	20	3	80
80-125(I)A	7.5	10	89	16	3	80
80-160(I)	15	20	100	32	3	80
80-160(I)A	11	15	93.5	28	3	80
80-200(I)	22	30	100	50	3	80
80-200(I)A	18.5	25	93.5	44	3	80
80-200(I)B	15	20	87	38	3	80
80-250(I)	37	50	100	80	3	80
80-250(I)A	30	40	93.5	70	3	80
80-250(I)B	30	40	87	60	3	80
80-315(I)	75	100	100	125	3	80
80-315(I)A	55	75	95	113	3	80
100-100	5.5	7.5	100	12.5	4	100
100-100A	4	5.5	89	10	4	100
100-125	11	15	100	20	4	100
100-125A	7.5	10	89	16	4	100
100-160	15	20	100	32	4	100
100-160A	11	15	93.5	28	4	100
100-200	22	30	100	50	4	100
100-200A	18.5	25	93.5	44	4	100
100-200B	15	20	87	38	4	100
100-250	37	50	100	80	4	100
100-250A	30	40	93.5	70	4	100
100-250B	30	40	87	60	4	100
100-315	75	100	100	125	4	100
100-315A	55	75	95	113	4	100
100-315B	45	60	90	101	4	100
100-350	90	120	100	150	4	100
100-350A	75	100	88	142	4	100
100-350B	55	75	80	135	4	100
100-100(I)	11	15	160	12.5	4	100
100-125(I)	15	20	160	20	4	100
100-125(I)A	11	15	140	17	4	100
100-160(I)	22	30	160	32	4	100
100-160(I)A	18.5	25	140	28	4	100
100-200(I)	37	50	160	50	4	100
100-200(I)A	30	40	140	45	4	100
100-200(I)B	22	30	100	40	4	100
100-250(I)	55	75	160	80	4	100
100-250(I)A	45	60	140	72	4	100
100-250(I)B	37	50	100	65	4	100
125-100	11	15	160	12.5	5	125
125-100A	7.5	10	143	10	5	125
125-125	15	20	160	20	5	125
125-125A	11	15	143	16	5	125
125-160A	18.5	25	150	28	5	125
125-160B	15	20	138	24	5	125
125-200	37	50	160	50	5	125
125-200A	30	40	150	44	5	125
125-200B	22	30	138	37.5	5	125
125-250	55	75	160	80	5	125
150-125	11	15	160	20	6	150
150-160	22	30	160	32	6	150
150-160A	18.5	25	150	28	6	150
150-160B	15	20	140	24	6	150
150-200	37	50	160	50	6	150
150-200A	30	40	150	44	6	150
150-250	75	100	160	80	6	150
150-250A	55	75	150	70	6	150
150-250B	45	60	138	60	6	150
150-350	110	150	160	150	6	150
150-350A	90	120	150	142	6	150
150-350B	75	100	140	135	6	150
150-250(I)	75	100	200	80	6	150
150-250(I)A	55	75	187	70	6	150
150-250(I)B	45	60	173	60	6	150
150-315(I)	110	150	200	125	6	150
150-315(I)A	90	120	187	110	6	150
150-315(I)B	75	100	173	95	6	150
125-200B	22	30	138	37.5	5	125
125-250A	45	60	150	70	5	125
125-250B	37	50	138	60	5	125
125-315	90	120	160	125	5	125
125-315A	75	100	150	110	5	125
125-315B	75	100	143	100	5	125
125-315C	55	75	134	88	5	125
150-125A	7.5	10	150	16	6	150
150-200-15	15	20	160	12.5	6	150
150-200A	11	15	147	10	6	150
150-250	75	100	160	80	6	150
150-250	18.5	25	160	20	6	150
150-250A	15	20	147	17	6	150
150-250B	11	15	134	14	6	150
150-315	30	40	160	32	6	150
150-315A	22	30	150	28	6	150
150-315B	18.5	25	138	24	6	150
150-400	45	60	160	50	6	150
150-400A	37	50	187	44	6	150
150-400B	30	40	174	38	6	150
150-315(B)	75	100	173	95	6	150
200-200	15	20	200	12.5	8	200
200-200A	11	15	179	10	8	200
200-250	18.5	25	200	20	8	200
200-250A	15	20	184.4	17	8	200
200-250B	11	15	179	14	8	200
200-315	30	40	200	32	8	200
200-315A	22	30	187	28	8	200
200-315B	18.5	25	173	24	8	200
200-400	45	60	200	50	8	200
200-400A	37	50	187	44	8	200
200-400B	30	40	174	38	8	200
200-200(I)	22	30	400	12.5	8	200
200-250(I)	30	40	400	20	8	200
200-250(I)A	22	30	358	16	8	200
200-315(I)	55	75	400	32	8	200
200-315(I)A	45	60	374	28	8	200
200-315(I)B	37	50	346	24	8	200
200-400(I)	75	100	400	50	8	200
200-400(I)A	75	100	374	44	8	200
200-400(I)B	55	75	346	38	8	200
200-400(I)C	45	60	320	32	8	200
250-400	110	150	500	50	10	250

Feature and Application

● Compact Design: The horizontal pipeline layout ensures a space-saving footprint and sleek, professional appearance.
● Inlet and Outlet Positioning: The inlet is placed horizontally, with the outlet positioned vertically for streamlined installation and piping configurations.
● Stable and Low-Noise Operation: Enhanced concentricity and high-quality materials keep the pump stable and quiet.
● Reliable Sealing: Equipped with a high-durability mechanical seal, crafted from materials like silicon carbide, providing leak-free and long-lasting operation.
● Simplified Maintenance: The unique design allows for easy access without disconnecting the piping—simply remove the pump cover nut and access motor components for servicing.

The stainless steel horizontal pipeline pump IHW vertical pipeline centrifugal pump is designed for transporting clean water and other liquids with similar physical and chemical properties. It is suitable for the following applications:

● Industrial Water Supply
● Urban Water Supply and Drainage
● High-Rise Building Water Pressure Boosting
● Fire-Fighting Pressure Boosting
● Garden Irrigation
● HVAC Refrigeration Circulation
● Bathroom Hot and Cold Water Circulation Pressure Boosting
● Long-Distance Transportation
● Equipment Integration
